# Document Processing

In short:**This is Cherry Studio's central configuration for "recognizing text in PDFs / images / scans".**

For example, the following all depend on it:

* You drag a scanned contract PDF into the chat box and want the AI to understand its contents
* You put a pile of invoice images into[Knowledge Base](/docs/en-us/knowledge-base/knowledge-base.md), hoping to be able to search them later
* your [Agent](/docs/en-us/cherry-studio/preview/agent.md) needs to open a screenshot in the local folder for analysis

Behind these scenarios, you first need to turn "text in images" into "text the AI can read"; this step is technically called **OCR**(Optical Character Recognition, optical character recognition).

Cherry Studio centralizes OCR configuration in**a single settings page**: configure it once here, and all places that use OCR will share the same configuration.

### Configuration entry

Open `Settings → Document Processing`:

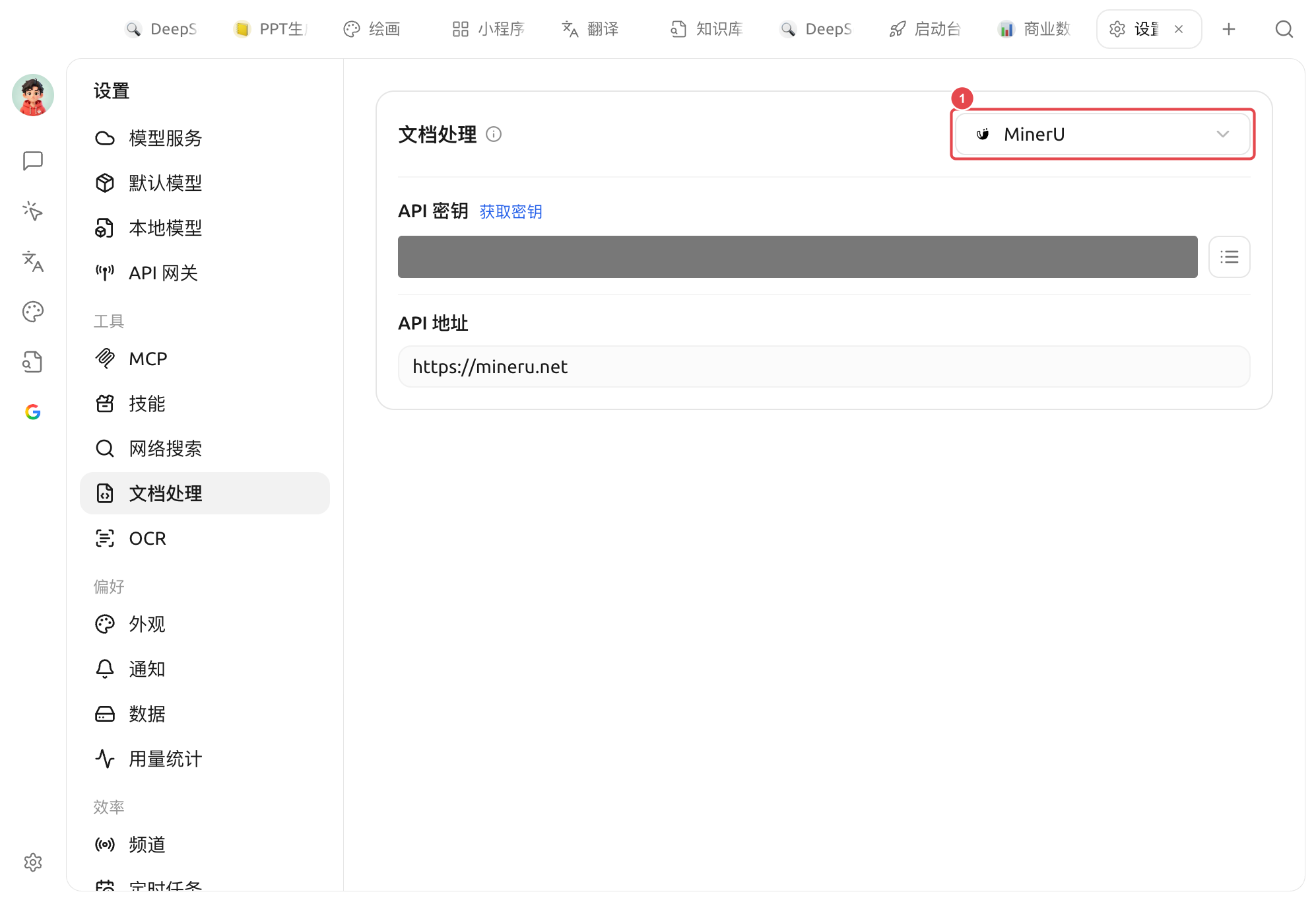

<figure><img src="/files/b0e51a03f9ca4b89a7e996a560d7d96c90c9942f" alt=""><figcaption><p>Document Processing settings panel</p></figcaption></figure>

The panel is divided into two parts, handling "image text recognition" and "PDF parsing" respectively.

#### 1. OCR Service — recognize text from images

Applicable to: images (screenshots, scans), content that must be recognized as text before AI can read it.

* **macOS**: choose "System OCR" and you're good to go,**no configuration required**, using the system's built-in image recognition capability, offline and free ✅
* **Windows**: choose "System OCR" out of the box; if you need to recognize languages other than English/Chinese, you need to download the corresponding language pack in Windows
* **Linux / Advanced**: optional Tesseract, Paddle OCR, OpenVINO, etc.

<details>

<summary>OCR engine comparison</summary>

| Engine         | Who is it for                                                                                              |
| -------------- | ---------------------------------------------------------------------------------------------------------- |
| **System OCR** | The simplest, no configuration, usually good enough                                                        |
| **Tesseract**  | Classic open-source OCR, built into Cherry Studio, supports custom languages                               |
| **Paddle OCR** | Better Chinese recognition (open-sourced by Baidu), requires "Star River Community access token + API URL" |
| **OpenVINO**   | Intel graphics can accelerate it                                                                           |

If unsure, use the default System OCR; switch only if recognition is poor.

</details>

#### 2. Document Processing provider — structured parsing for PDFs / complex documents

Applicable to: PDFs with tables / multi-column layouts / scanned pages, long documents. Ordinary plain-text PDFs can be read directly, no need to go through here.

| Provider                 | Simple description                                                                                                                                                              |
| ------------------------ | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **MinerU**(default)      | Free cloud service, specialized in complex-layout PDFs (academic papers, contracts, etc.), requires going to [mineru.net](https://mineru.net) to register and obtain an API Key |
| **Paddle OCR**           | Offline solution, requires configuring a Star River Community access token                                                                                                      |
| **Third-party provider** | Uses the vision model of a configured AI service provider to recognize them (smarter results but paid)                                                                          |

### Configure MinerU (default option)

1. in **API Key** Fill in the key obtained from MinerU in the field
2. **API Host** Keep default `https://mineru.net`
3. When switching to the knowledge base or Agent, no additional configuration is needed; it will automatically use the settings here

### Relationship with the knowledge base

* Document processing only handles the step "non-text → text"
* The converted text then continues to [embedding model](/docs/en-us/knowledge-base/emb-models-info.md) vectorization, storage into the database
* See the detailed "enable in knowledge base" process at [Knowledge base document preprocessing](/docs/en-us/knowledge-base/document-preprocessing.md)

### When configuration is not needed

* You only import plain text into the knowledge base (`.md` / `.txt` / `.docx` plain text paragraphs in) → does not go through document processing at all
* You only use chat, without uploading files → same as above

### Tips and tricks

* MinerU is significantly better than Tesseract for PDFs with tables / multi-column layouts; it is the first choice for academic papers and the like
* For offline scenarios, use Paddle OCR or Tesseract (works without internet)
* After switching processors, previously vectorized materials **will not be automatically reprocessed** — need to re-import manually

***

### 💡 Get help and submit feedback

If you encounter any questions, bugs, or have suggestions for feature improvements during configuration or use, please refer to [Feedback and Suggestions](/docs/en-us/question-contact/suggestions.md) the official channels provided there.


---
